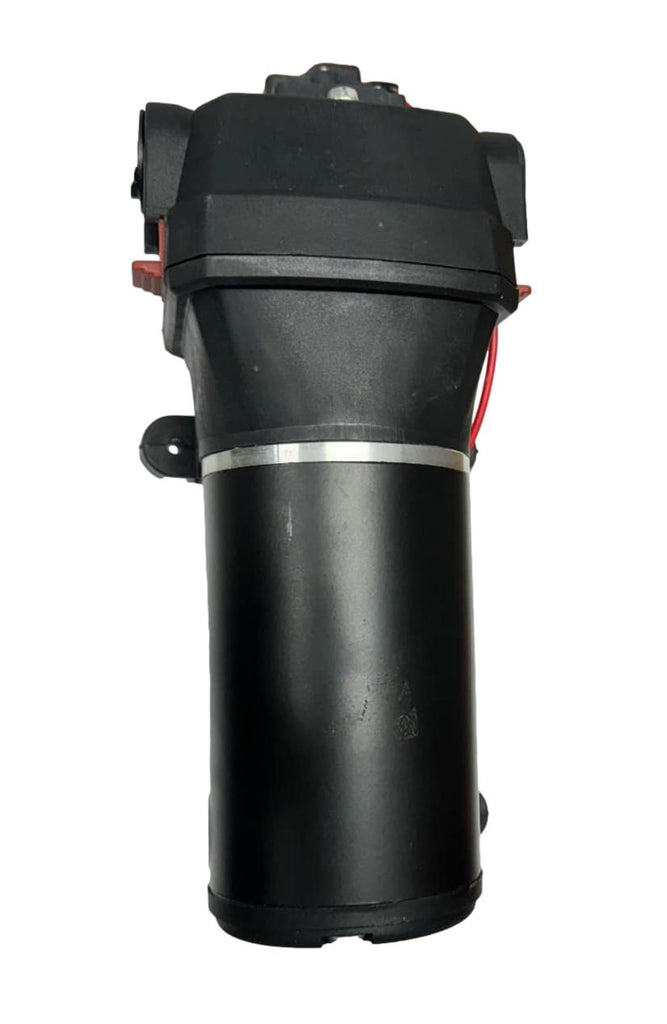

The SFDP1-041-055-41 is a water pressure pump from SEAFLO's 41-Series of DC diaphragm pumps. Here are the key details about this pump model:
Specifications
- Voltage: 12V DC
- Flow Rate: 4.1 GPM (15.5 LPM)
- Pressure: 55 PSI (3.8 BAR)
- Type: 4-chamber positive displacement diaphragm pump
Key Features
- Self-priming capability with up to 6 feet (1.8 m) suction lift
- Run-dry safe - can operate without water without damage
- Built-in pressure switch for automatic on/off operation
- Internal bypass for reduced pump cycling
- Quick-attach fittings for easy installation and maintenance
Applications
This pump is designed for use in:
- Marine vessels
- RVs and caravans
- Remote cabins
- Agricultural spraying
- General industrial use
- Filtration systems
- Beverage processing
Performance
- Can supply up to 5 fixtures/outlets
- Provides high water flow volume with reduced cycling
- Operates reliably with low current draw
The 41-Series pumps like this model are compact, automatic demand water system pumps that can operate without an accumulator tank. They offer a good balance of flow rate and pressure for typical marine and RV applications requiring a robust, self-priming pump.
