The 7000# Brake Drum 8-6.5 1/2" Studs & 12" x 2" Brake Assembly (Kit) - LH is a premium-quality solution for your heavy-duty trailer's braking system. This comprehensive kit includes a durable brake drum and a complete brake assembly, designed to provide reliable and effective braking performance for trailers with an 8-on-6.5-inch bolt pattern and 1/2-inch studs.
Key Features:
- Capacity: Rated for up to 7,000 lbs of trailer weight
- Bolt Pattern: 8-on-6.5-inch
- Stud Size: 1/2"
- Brake Size: 12" x 2"
-

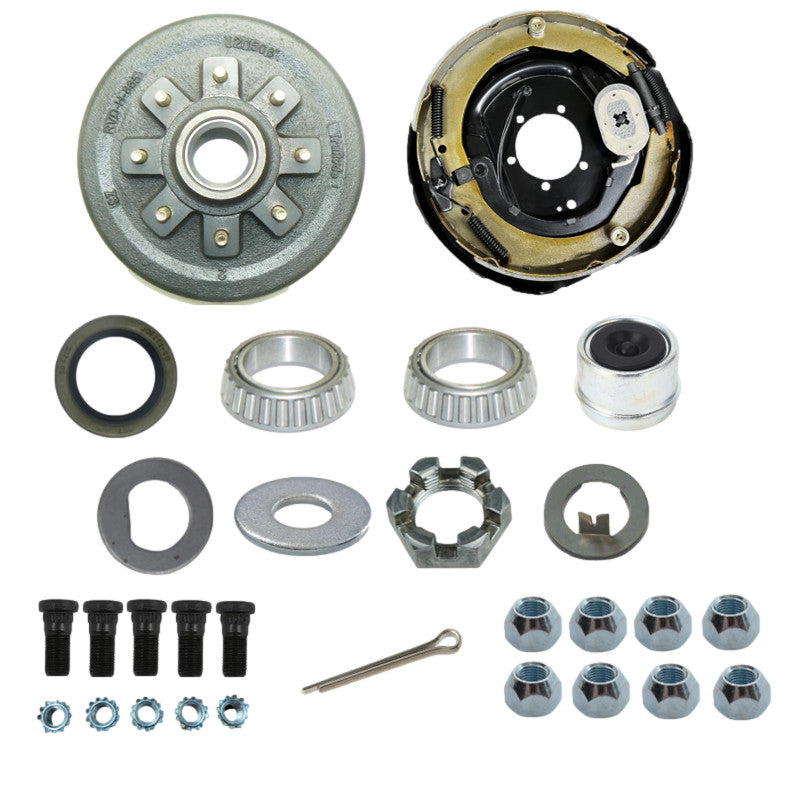

Includes:
- 1 x 7000# Brake Drum 1/2" Studs (Includes Races)
- 1 x 12" Brake Assembly Left Hand
- 1 x 12" Brake Assembly Mounting Bolts 5pc Kit
- 1 x 12" Brake Assembly Nut w/External Tooth Lockwasher 5pc Kit
- 1 x 7000# Seal GS-2250DL
- 1 x 7000# Inner Bearing 25580
- 1 x 7000# Outer Bearing 14125A
- 1 x 8 Lug Dust Cap w/Rubber Insert Kit
- 1 x 8 Lug Solid Dust Cap
- 1 x Tang Washer
- 1 x Cotter Pin
- 1 x 1 5/8" Flat D Washer
- 1 x 1 5/8" Round Washer
- 1 x Spindle Nut
- 8 x 1/2"-20 Lug Nuts
- Durable Construction: Made from high-quality materials for long-lasting performance
- Easy Installation: Complete kit with all components for a straightforward installation process
Benefits:
- Improved Braking Performance: The 12" x 2" brake assembly provides excellent stopping power, ensuring safe and controlled trailer operation, even for heavy-duty applications.
- Increased Stability: The sturdy construction and secure mounting of the brake components contribute to improved trailer stability and control.
- Reduced Maintenance: The high-quality materials and components minimize the need for frequent maintenance, saving you time and effort.
- Versatile Application: Suitable for a wide range of heavy-duty trailer types, including utility, cargo, and recreational trailers.
