Features:

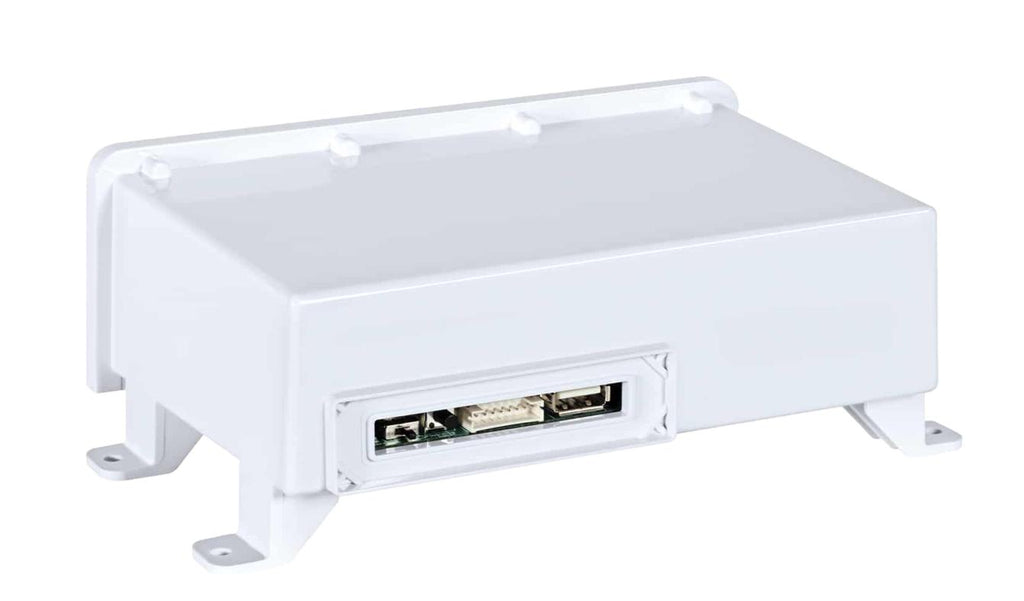

• 4 Zone + Subwoofer Audio DSP Module
• Non-Branded White enclosure• Communicates with external controller (UM2) via JDAB
1. Independent Volume controls for each zone and subwoofer
2. Master Volume and Mute controls
3. Bass/ Mid/ Treble controls (-/+3dB)
• 2-Wire Power Supply Requirement (Switched +12VDC/ Ground)
• 4 Vrms differential stereo input
• All Zones and Subwoofer 5.5 Vrms differential output
• Compatible with Polk Ultramarine Amplifiers
• iPX5 waterproof rated.
• 6-pin Waterproof Locking Audio connectors
• DSP and MCU Programmable via hidden USB port.
Specs:
Weight: 1 lbs.
Overall Dimensions: 7.75" W x 3" H x 4.75" D
