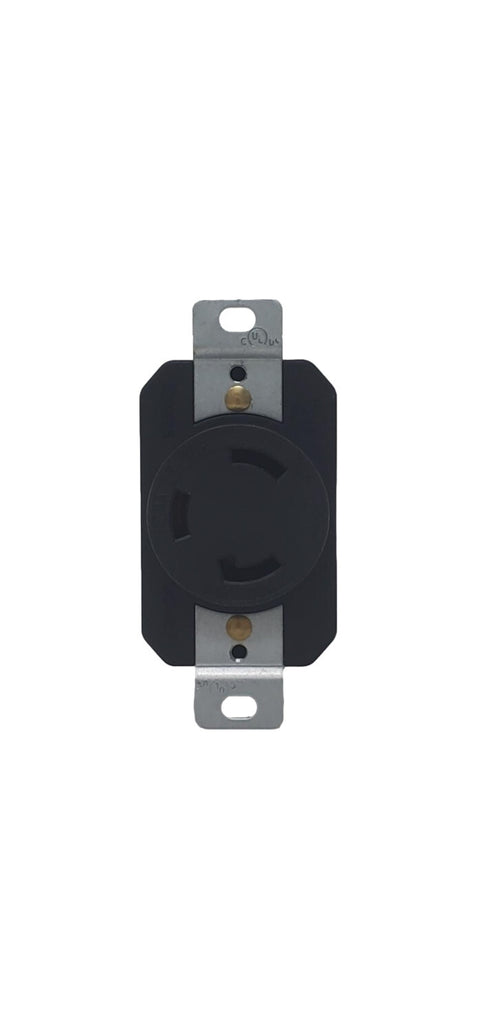

The (B-055) Generator Receptacle L5-30R is a UL certified, high-quality power receptacle designed for reliable and safe electrical connections. This NEMA L5-30R locking female receptacle is ideal for generator applications and other heavy-duty power needs.
Key Features:
- Type: US 3-hole power female plug
- Rating: 125V, 30A
- Durability: Capable of 20,000 plug-in cycles
- Temperature Range: -77°F to 122°F (-60°C to 50°C)
- Dimensions: 3.66" x 1.69"
- Weight: 0.22 lbs
Wiring Configuration:
The receptacle features a 3-hole design with a simple color-coded wiring system:
- W (White wire): Neutral
- G (Green wire): Ground
- Y (Black wire): Hot
This locking receptacle ensures a secure connection, making it ideal for applications where vibration or accidental disconnection could be a concern. Its robust construction and wide operating temperature range make it suitable for both indoor and outdoor use.
Whether you're setting up a backup power system or need a reliable power outlet for your RV or worksite, the (B-055) Generator Receptacle L5-30R provides a safe and dependable solution for your 125V, 30A power needs.
