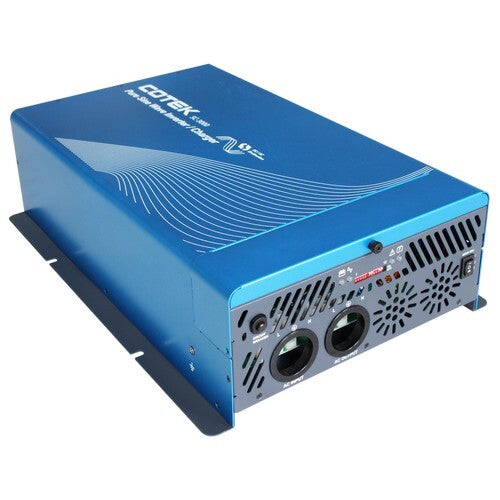

SC-3000 Features
- Bi-directional inverter/charger.
- Automatically various operating modes:
- Inverter mode.
- Charger mode.
- Power Sharing.
- Power Generation.
- Power Support
- 3 charging stages with the max charging current up to 150A.
- Certified UL458, FCC Class A, CE EN62368-1, e-Mark.
- Full load from -20℃ to 40℃ without power derating.
- High Power Density (3000W @ 9.6 kg / 21.2lbs).
- Charging Compensation via the temperature sensor.
Specification
MODEL: SC-3000-112
Main Features:
- All in one design: Bi-directional inverter/charger
- Certified UL458, FCC Class A, CE EN62368-1, e-Mark
- High Power density (3000W @ 9.6 kg / 21.2lbs)
AC Output Voltage: 100/110/115/120VAC ± 3%
Rated Power: 3000VA
Surge Power: 6000VA
Output Waveform: Pure Sine Wave (THD < 5% @ 12.5V/25V/115VAC, linear load) / (THD < 3% @ 12.5V/25V/230VAC, linear load)
Frequency: 50/60 Hz ± 0.3 Hz (User-selectable)
DC Output Voltage: ─
DC Output Voltage Range: ─
DC Input Voltage: 12V; 24VDC Input Voltage Range10.5 ~ 16.5 VDC; 21 ~ 33 VDC
Efficiency: >89%
Operating Temperature: Full Load from -20°C to 40°C, Power De-rating from 41°C to 60°C
Storage Temperature: -30 ℃~70 ℃
Safety: UL458, FCC Class A, EN62368-1, e-Mark CISPR 25, EN55032 Class A, EN55035 Class A, EN61000-3-2, -3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Dimension: (WxHxD)314 x 127.4 x 508.8mm
Weight: (Net)9.6 Kg / 21.2lbs
