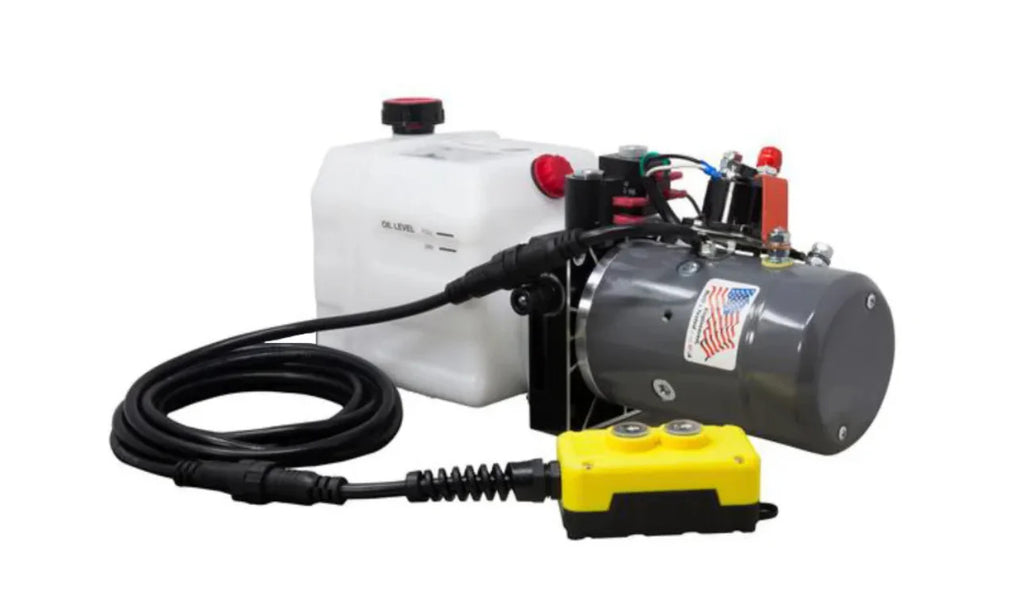

Key Features
- Dual Acting: Powers both upward (extension) and downward (retraction).
- Motor/Power: 1.6KW, 12-volt DC motor.
- Pressure Ratings: 3,200 psi extension (up) and 1,500 psi retraction (down) working pressure.
- Reservoir: 4-quart usable volume translucent reservoir.
- Control: Includes a 12-foot remote pendant switch with a quick disconnect.
- Compatibility: Designed for ramtrailerproducts.com hydraulic jacks and scissor hoists. RAM Trailer Products +4
Technical Specifications
- Manufacturer: RAM Trailer Products (often associated with KTI/Premium Supply components).
- Model/SKU: HPU-DA004.
- Port Size: SAE#6.
- Mounting: Horizontal.
Important Notes
- Lines/Battery: Hydraulic lines and battery cables are not included.
- Application: Ideal for dump trailers, tilt decks, and hydraulic jacks.
