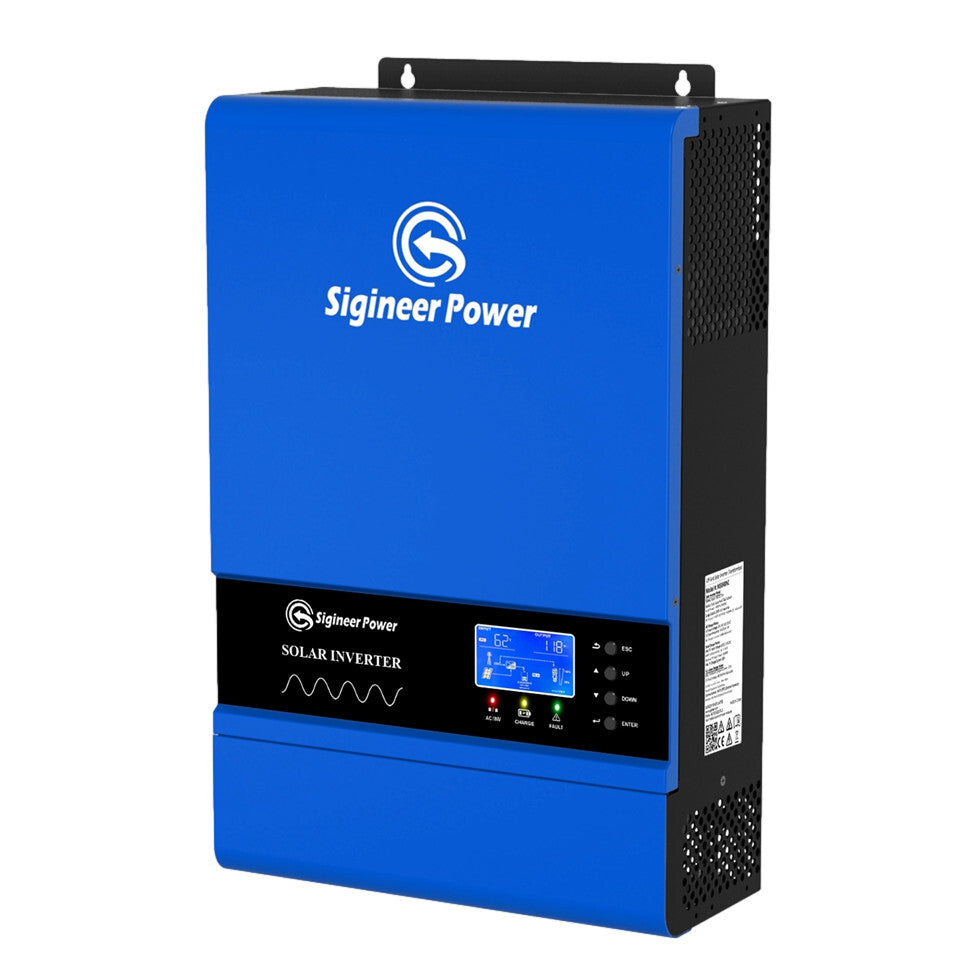

Sigineer Power 3000W Off Grid Stackable PV Inverter 80A MPPT Solar Charger (M3048NC)

Sigineer Power 3000W Off Grid Stackable PV Inverter 80A MPPT Solar Charger (M3048NC)

  • Sale
  • $ 600.00
  • Will be in stock after

3000W Off Grid Stackable PV Inverter 80A MPPT Solar Charger DC 48V to 110V 120V with 40A Utility Charger 50HZ 60HZ

Model #: M3048NC

FEATURES

  • Built-in 60-145Vdc 80A MPPT solar charge controller with 40A AC charger• High frequency transformer-less compact design & lightweight• Pure sine wave AC 100V 110V 120V output with 50hz/60hz switch• Parallel operation for 120V/240V split phase or 120/208V three phase output• Parallel operation up to 6 units• Optional WiFi/ GPRS remote monitoring• Optional RS485 communication with BMS (battery management system)• Overload, short circuit, over discharge, battery reverse protection• Dry Contacts for delivering signal about inverter operation status

    • Specification

    Rated Power: 3000VA/3000W

    Remote Monitoring: WiFi

    Remote Monitoring: GRPS

    AC Input Voltage: 110/120 VAC

    AC Input Range: 60-140Vac

    AC Input Frequency Range: 50 Hz/60 Hz (Auto sensing)

    AC Voltage Regulation (Batt. Mode): 110/120 VAC ± 5%

    AC Input Breaker: 40A

    AC Output Bypass Breaker: 40A

    Nominal AC Output Power: 3000VA/3000W

    Surge AC Output Power: 6000W (5 secs)

    DC To AC Efficiency (Peak): 0.93

    Transfer Time: 10 ms(For Personal Computers) ; 20 ms(For Home Appliances)

    Output Waveform: Pure Sine Wave

    Battery Voltage: 48 VDC

    CV & Float Charge voltage: 48.0V~58.4V Settable

    Maximum PV Array Power: 4500W

    MPPT Range @ Operating Voltage: 60~115 VDC

    Maximum PV Array Open Circuit Voltage: 145 VDC

    Maximum Solar Charge Current: 80 A

    Maximum AC Charge Current: 40 A

    Maximum Charge Current(PV+AC): 120 A

    Idle Power: 50W

    BMS Port: Available

    CAN Port: Available

    Inverter Dimension DxWxH: 455*295*130mm/17.9*11.6*5.1"

    Net Weight: 11.5KG/25.3lbs

    Gross Weight: 13.5KG/29.8lbs

    Humidity: 5% to 95% Relative Humidity (Non-condensing)

    Operating Temperature: ‐10℃ to 55℃(-14℉to 131℉)

    Storage Temperature: ‐15℃ to 60℃(5℉to 140℉)
